36" KitchenAid Under Cabinet Custom Hood Liner - UVL6036JSS
No Payments. No Interest if Balance Paid Off in 12 Months *
Available for delivery
You may also like
Product Overview

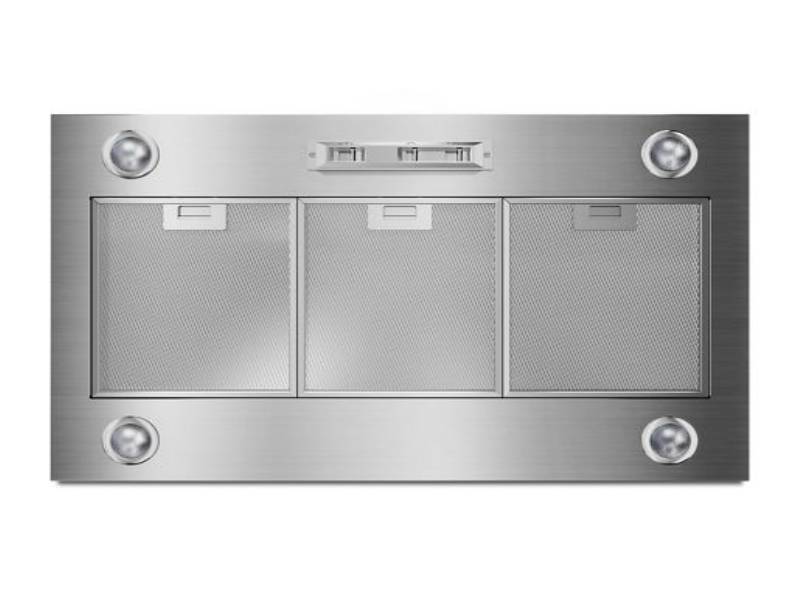

36" Custom Hood Liner
This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. It also offers you a choice of motors for different levels of ventilation power.
Additional Features
Three-Speed Fan
Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Requires 585 or 1170 CFM Motor Class Blower
Allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.
65,000 BTU Rating
Pairs with ranges or cooktops of comparable width with total burner outputs up to 65,000 BTU. Rating based on installation with 585 CFM Motor Class Blower; 1170 CFM Motor Class Blower also available. Both blower options sold separately.
Four LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Removable Filters
Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
KitchenAid® Custom Hood Liners
KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
| VENTILATION SYSTEM | |
|---|---|
| Sound Max Speed Sones | 1200.0 |
| Number of Speeds | 3 |
| Exhaust Vent Location | Top |
| Duct Type | Round |
| Duct Outlet Size | 10 |
| Duct Direction | Vertical |
| Blower Type | Centrifugal |
| Details | |
| Task Lighting | Yes |
| Task Light Type | LED |
| Number of Night Light Settings | 1 |
| Night Light | No |
| Configuration and Overview | |
| Size | 9144.00 cm, 36 in |
| Installation Type | Under Cabinet |
| Specification | |
| Net Weight | 12700576.00 kg, 28 lbs |
| Minimum Height | 7620.00 cm, 30.0 in |
| Maximum Height | 9144.00 cm, 36.0 in |
| Depth | 5588.00 cm, 22.0 in |
| Cutout Width | 9144.00 cm, 36.0 in |
| Cutout Depth | 5588.00 cm, 22.0 in |
| EndecaProps | |
| ProductOutletCategories | Cooking |
| Connectivity | |
| Energy Star | No |
| Kosher Consumer Friendly | No |
| Electrical | |
| Power Cord Included | No |
| Watts | 446 |
| CONTROLS | |
| Control Location | Hidden |
| Features | |
| Lighting Control Type | Slider |
